Description

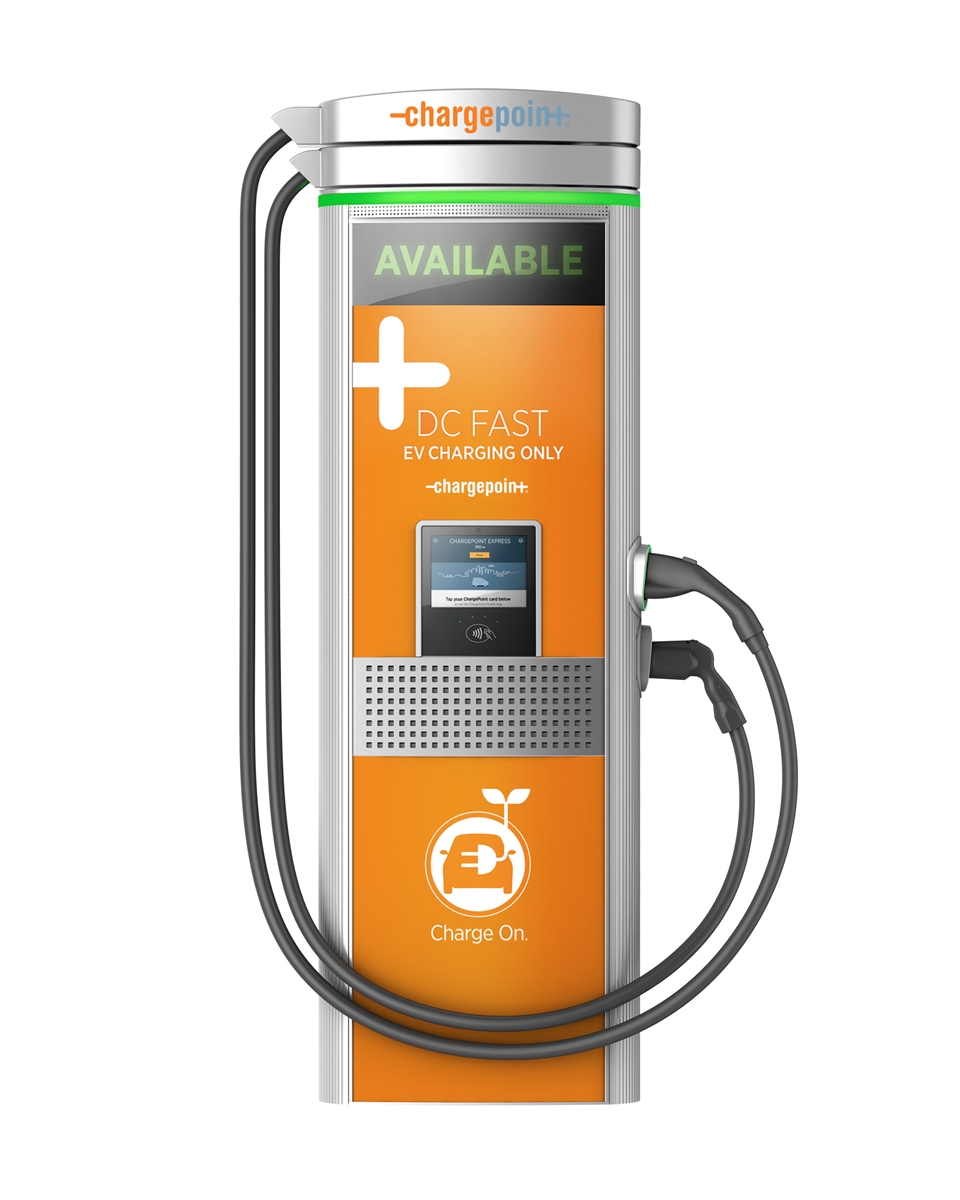

ChargePoint CPE250C-625-CCS1-200A-CHD
Commercial-Grade Level 3 fast DC Charging
ChargePoint
CPE250 DC Fast Chargers
62.5 kW DC Fast Charging for Stores, Fleets, Campuses & High-Value Sites
Put true highway-grade DC fast charging in front of your location. The ChargePoint® Express 250 models delivers up to 62.5 kW of DC power through CCS1 and CHAdeMO connectors from a compact, rugged pedestal built for busy commercial, government and non-profit sites.
Contact Us To Buy
Perfect if you want to:
-
Attract high-value customers and keep them on-site. EV fast-charging customers frequently shop, dine or use services while they charge; one large fast-charging network reports 8 out of 10 customers shop during sessions and spend about $42 per visit, with many retail programs seeing >$1 in-store spend per minute of charging.
-
Offer true fast charging (20–80% in ~30–45 minutes) for modern EVs, supporting everything from daily commuters to long-distance travelers.
-
Future-proof your property with DC hardware that supports battery packs from roughly 200–1000 V, ready for current and next-generation vehicles.
-

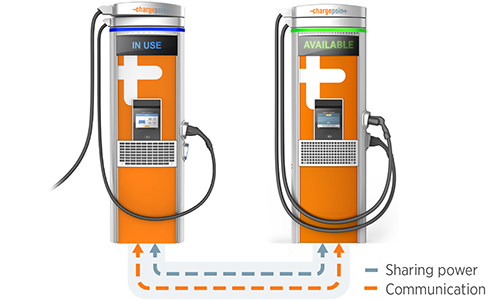

Support fleets, staff and visitors with one charger today and simple expansion later by adding a second Express 250 for up to 125 kW paired output.
Fast, Simple Driver Experience:
Express 250 is designed to be intuitive for every driver—from first-time EV owners to high-mileage fleet drivers:
-
Up to 62.5 kW DC fast charging per station; pair two units for up to 125 kW shared power, depending on vehicle capability.
-
Dual connectors standard (this configuration includes CCS1 + CHAdeMO), so you can serve nearly every DC-capable EV on North American roads.
-

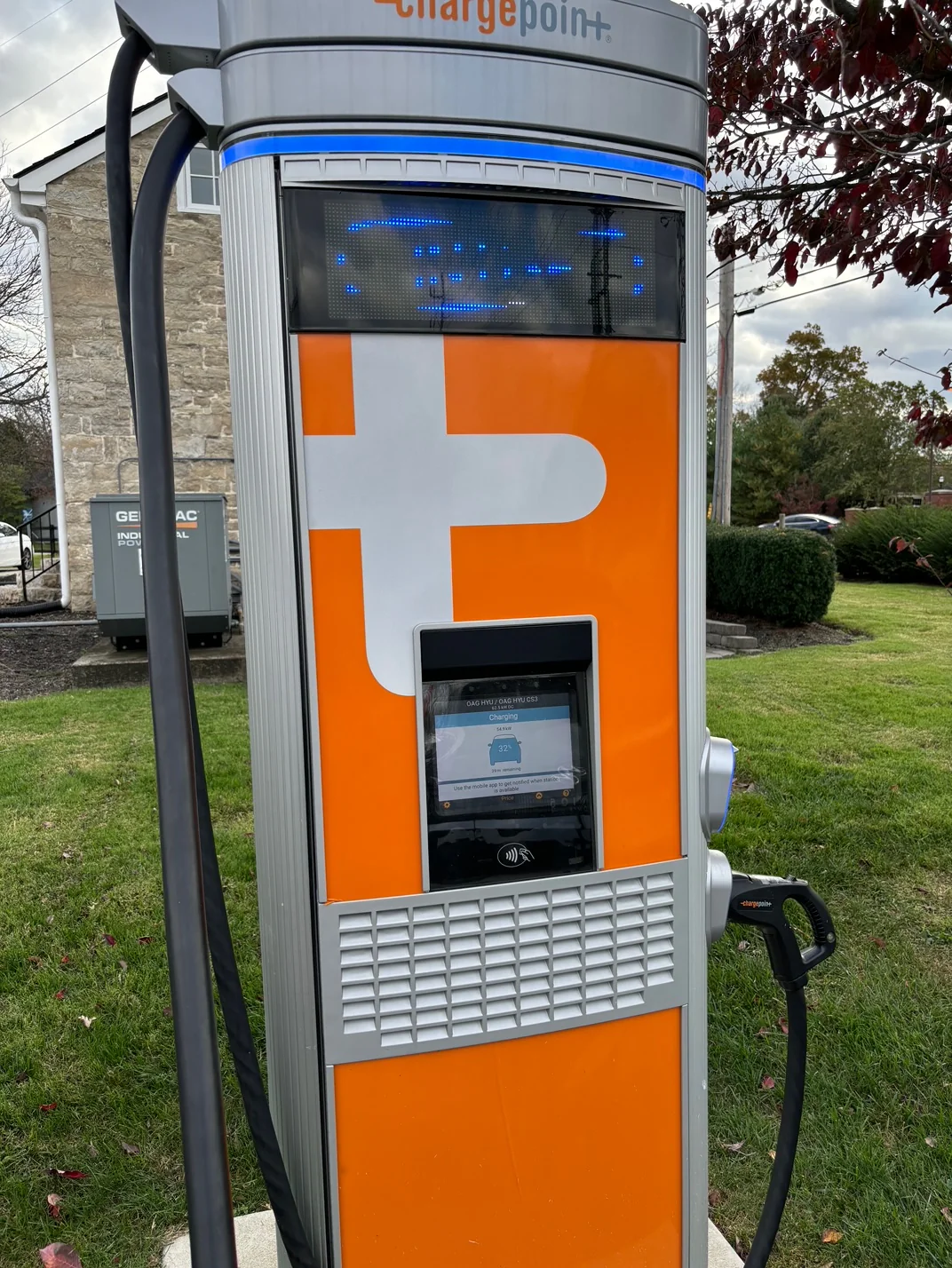

Large, full-color touchscreen guides drivers with clear prompts, pricing and charging status.
-
Top-mounted LED status light lets drivers and staff see charger availability from a distance.
-
Ergonomic cable management and generous horizontal reach make it easy to plug in vehicles from different parking angles while keeping cables off the ground.
-

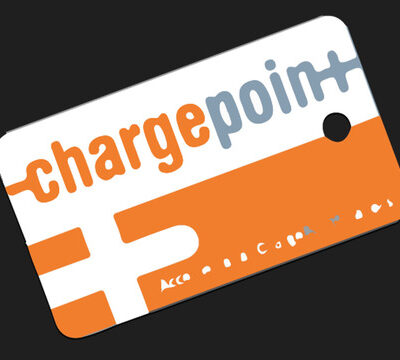

Drivers can start a session via RFID card, tap-to-pay/NFC, the ChargePoint app or in-vehicle integration (where supported), making the experience feel familiar and professional.
Smart, Networked & Revenue-Ready:
Every Express 250 is a fully networked, cloud-managed charger powered by the ChargePoint platform:
-
Flexible pricing tools – charge by kWh, time, session, driver group, or use blended and time-of-use pricing.
-
Real-time monitoring – track station status, energy delivered, session counts and revenue from a single dashboard.
-
Access control – open your chargers to the public, restrict to fleets or staff, or mix access rules by time of day.
-
Open standards – OCPP-based networking keeps you aligned with industry standards and future integrations.
-
Automatic software updates – new features and improvements are delivered over-the-air.
- CP EV Charger focuses on helping you select and purchase the right hardware and software options, then connects you with ChargePoint’s support ecosystem for ongoing monitoring and maintenance under their programs.
Recommended options:
When you buy an Express 250 from CP EV Charger, we’ll help you bundle the right manufacturer services so your station launches smoothly and stays reliable:
-
ChargePoint Cloud Plan (CPCLD-ENTERPRISE-DC-n)
Commercial cloud subscription (1–5 years) for station networking, pricing, reporting and remote management. - Station Activation & Configuration (CPSUPPORT-ACTIVE)
Initial station activation, radio and network configuration, driver access settings, pricing, alerts and reporting setup. -
Commissioning / Install + Commissioning (CPE250-COMMISSIONING / CPE250-INSTALL-COMMISSIONING)
ChargePoint or an authorized commissioning partner validates installation, tests safety and performance, and delivers a commissioning report. -
ChargePoint Assure® Extended Warranty (CPE250-ASSURE-n)
Manufacturer’s maintenance and uptime program (1–5 years) that includes parts and labor coverage, 24/7 remote monitoring, on-site repair coordination, configuration changes and a 98% annual uptime target for qualifying sites.
Who the 250 Is Ideal For
Cable Management & Security
Well-managed cables improve safety, reduce wear and deter tampering:
-
Integrated cable management system with long horizontal reach to serve a wide variety of parking layouts.
-
Cables stay off the ground when not in use, reducing trip hazards and extending cable life.
-
Secure connector holsters help deter vandalism and signal when a connector is properly docked.
For sites with a high risk of vandalism, CP EV Charger can help you evaluate additional physical security options (barriers, cameras, signage) as part of your broader site design.
Revenue, Dwell Time
& Business Impact
EV charging is often two revenue streams in one: charger income plus in-store or on-property spending. Independent data from multiple studies and charging networks show:
-
At retail fast-charging sites, 8 out of 10 EV drivers shop while they charge, with average spend around $40–$45 per session at grocery and retail locations.
-
Internal EVgo Advantage™ data cites an average 33-minute session and roughly $42 in spend per customer visit across many retail-hosted fast chargers.
For an illustrative example only:
-
25 charging sessions per day
-
Average 30 minutes per session
-
$1 of incremental on-site spend per minute
…could mean roughly $750/day in incremental retail revenue, before counting charging fees. Actual results will vary by site, tenant mix, pricing and traffic patterns, but the direction is clear: fast chargers can pay off both at the plug and at the register.
CP EV Charger can help you think through AC vs DC mix, pricing, and how Express 250 can complement Level 2 chargers to create the right blend of dwell time and throughput at your property.
Designed for Real-
World Outdoor Sites
Express 250 is engineered for high-duty, outdoor commercial use:
-
Weather-resistant enclosure (Type 3R, similar to IP54) for harsh climates and outdoor parking lots.
-
Wide operating temperature range, roughly -40°F to 122°F (-40°C to 50°C).
-
Rugged construction and impact rating for busy public environments.
-
High-efficiency power conversion (>95%) reduces wasted energy and operating costs.
-
Designed and listed to major UL and cUL safety standards for DC fast charging.
This makes the Express 250 suitable for desert heat, winter snow, coastal locations and everything in between—ideal for nationwide deployments.
Ideal Sites & Use Cases
Express 250 is a strong fit wherever you need fast turns and measurable business impact:
-
Retail & grocery centers – attract higher-income EV drivers, increase dwell time and basket size, and differentiate your property.
-
Restaurants, entertainment & travel plazas – match 30–45 minute charging sessions with typical visit lengths.
-
Gas stations & convenience stores – capture fueling-style visits while adding a premium coffee, food or retail upsell.
-
Fleets & depots – support mid-day opportunity charging and quick top-offs between routes.
-
Municipal lots, campuses & hospitals – provide visible proof of sustainability commitments while serving staff and visitors.
-
High-end estates & private garages – select properties that want true DC fast charging on-site for super-EVs and VIP guests.
Incentives & Tax Credits – Act While Federal 30C Still Exists
Many projects can significantly reduce net cost using federal, state, local and utility incentives. Highlights include:
-
The federal Alternative Fuel Vehicle Refueling Property Credit (Section 30C) currently offers up to 30% of eligible project cost, capped at $100,000 per DC charger, when specific siting and labor rules are met.
-
Under recent legislation, 30C is now scheduled to expire for equipment placed in service after June 30, 2026—a much shorter window than originally planned.
-
Many states, air districts and utilities layer on their own rebates or make-ready programs, which can offset an additional 30–60% of project cost in some territories.
We strongly encourage every customer to:
- Confirm eligibility, labor requirements and timeline with a qualified tax advisor.
- Use DOE and state incentive finders to stack incentives where allowed.
- Plan backwards from the “placed in service” deadline, not just purchase date.
CP EV Charger does not provide tax or legal advice, but we stay current on major programs and can help you ask the right questions and connect with specialist advisors.
Safeguard your investment
Protect your equipment with industry-leading monitoring, maintenance and support. ChargePoint offers world-class service products and support, including the Assure® monitoring and maintenance program, to meet your needs at every stage of the EV charging experience.
– 98% uptime service level target backed by proactive monitoring
– 24/7 remote monitoring, diagnostics and driver support
– Coverage of parts and on‑site labor for eligible repairs during the Assure term
– Priority response targets for covered incidents to minimize downtime
– Options to bundle Assure with activation and site validation services for a turnkey experience
Protect Your Investment: Assure® Monitoring & Support
EV charging is critical infrastructure. Protect it with ChargePoint Assure®
Why Buy Your Express 250
from CP EV Charger
-
Authorized ChargePoint VAR & manufacturer’s representative focused solely on selling and configuring best-in-class EVSE.
-
Nationwide sales coverage for commercial, government, non-profit and select estate customers across North America.
-
Solar & storage expertise: when your project includes solar and batteries, CP EV Charger can coordinate with our solar/battery consulting partner from initial design through PTO, including TPO/lease options where available.
-
Connected to the ecosystem: while day-to-day station support is delivered by ChargePoint and its service partners under their warranty and Assure programs, CP EV Charger remains your sales-side ally—pointing you to the right support channels and helping you plan your long-term charging strategy.
Use this page as your starting point to evaluate whether the ChargePoint Express 250 is the right DC fast charger for your site. When you’re ready, CP EV Charger can quote hardware, manufacturer services and—where applicable—solar and storage options to help you turn EV charging into a real business asset.
Key Technical Specs
CPE250C-625-CCS1-200A-CHD
High-level specifications for this featured configuration (always confirm current datasheet before final design):
-
Charger type: DC fast charger (Level 3)
-
Max output power: 62.5 kW per station (up to 125 kW when two Express 250s are paired)
-
Battery voltage range: approx. 200–1000 V DC
-
Max output current: up to ~156 A (higher combined current when paired; see datasheet)
-
Input power: 480Y/277 V AC, 3-phase, ~80 A, 60 Hz
-
Connectors on this model: CCS1 + CHAdeMO
-
Enclosure rating: Outdoor-rated, similar to NEMA 3R / IP54
-
Display: 10″ full-color LCD touchscreen plus top LED status indicator
-
Networking: Cellular 4G LTE and Wi-Fi; OCPP-based networking
-
Certifications: UL/cUL listed; designed to meet leading safety and metering standards
For detailed civil, electrical and mounting requirements, we’ll provide the latest ChargePoint datasheet and installation guidelines as part of your purchase package.
Configuration Options
Express 250 offers flexibility to match your site and business model:
-
Mounting: Ground (pedestal) or wall-mount options, depending on configuration.
-
Connectors: CCS1 + CHAdeMO standard on this model; other combinations available through ChargePoint.
-
Single vs paired: Start with a single 62.5 kW unit or pair two stations for up to 125 kW shared output.
-
Branding & signage: Optional custom signage and branding opportunities near the charger to reinforce your store or campus identity.
The industry leader
Prepare for the future of electric
mobility with the experts:
– 82% of Fortune 50 companies rely on ChargePoint
– 18+ years of EV charging experience
– 367M+ charges delivered (and counting)
– 363K+ activated ChargePoint charging ports worldwide
